Szczegóły informacji

Height:	3m	Load Capacity:	90/110/113kg
Color:	Any color can be customized	Weight:	800kg
Power:	24V/120AH	Overall Size:	1.440.751.41m
Podkreślić:	forklift clamp attachment , drum handling equipment forklift attachment

opis produktu

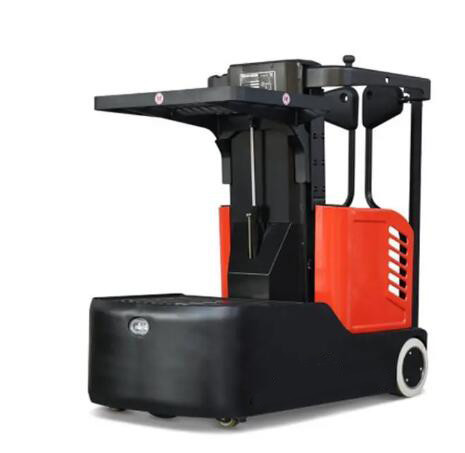

3m Warehouse Self Drive Electric Order Picker

Distinguishing mark
1.1	Manufacturer			CHEN LIFT
1.2	Model designation			MOP300
1.3	Drive unit			Electirc
1.4	Operator type			Order Picke
1.5	rated capacity	Q 1	kg	90
		Q 2	kg	110
		Q 3	kg	136
1.6	Load center distance	c	mm	--
1.8	Load distance,centre of drive axle to fork	x	mm	--
1.9	Wheelbase	y	mm	1095
Weight
2.1	Service weight (include battery)		kg	800
2.2	Axle loading, laden driving side/loading side		kg	--
2.3	Axle loading, unladen driving side/loading side		kg	370/430
Types,Chassis
3.1	Tyre type, Driving wheels/Loading wheels			PU/Rubber
3.2	Tyre size, driving wheels(Diameter×Width)		mm	Ф210×70
3.3	Tyre size, loading wheels(Diameter×Width)		mm	Ф250×100
3.4	Tyre size, caster wheels(diameter×width)		mm	--
3.5	Wheels, number driving,caster/loading (x=drive wheels)		mm	1x,2/2
3.6	Track width, front,driving side	b10	mm	545
3.7	Track width,rear,loading side	b11	mm	640
Dimensions
4.2	Height, mast lowered	h1	mm	--
4.4	Lift height)	h3	mm	3620
4.5	Height, mast extended)	h4	mm	--
4.7	Height of overhead guard (cabin)	h6	mm	--
4.8	Seat height/standing height)	h7	mm	275
4.14	Stand height, elevated	h12	mm	3000
4.15	Lowered height	h13	mm	--
4.19	Overall length	l1	mm	1440
4.20	Length to face of forks	l2	mm	--
4.21	Overall width	b1/ b2	mm	750
4.22	Fork dimensions	s/ e/ l	mm	--
4.25	Outside width of the forks	b5	mm	--
4.32	Ground clearance, center of wheelbase	m2	mm	35
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	--
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	--
4.35	Turning radius	Wa	mm	1260
Performance data
5.1	Travel speed, laden/ unladen (H:0-500mm)		km/ h	6/6.5
	Travel speed, laden/ unladen (H:500-1000mm)		km/ h	3
	Travel speed, laden/ unladen (H:1000-2000mm)		km/ h	2
	Travel speed, laden/ unladen (H:2000-3000mm)		km/ h	1
5.2	Lifting speed, laden/ unladen(Q3)		m/ s	0.213/0.225
5.2	Lifting speed, laden/ unladen(Q1)		m/ s	0.023/0.028
5.3	Lowering speed, laden/ unladen)(Q3)		m/ s	0.230/0.233
5.3	Lowering speed, laden/ unladen)(Q1)		m/ s	0.030/0.029
5.8	Max. gradeability, laden/unladen		%	58
5.10	Service brake type			Electromagnetic
Electric-engine
6.1	Drive motor rating S2 60 min		kW	0.65
6.2	Lift motor rating at S3 15%		kW	2.2
6.3	The maximum allowed size battery		mm
6.4	Battery voltage/nominal capacity K5		V/ Ah	24V/120Ah
6.5	Battery weight		kg	35
Addition data
8.1	Type of drive unit			DC
10.5	Steering type			Electronic steering
10.7	Sound pressure level at the driver's ear		dB (A)	74

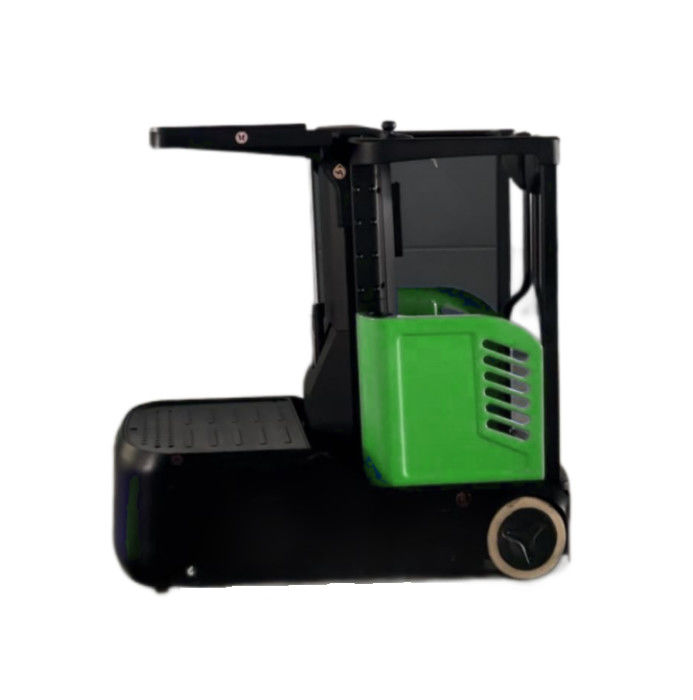

3m Warehouse Self Drive Electric Order Picker 0

Standard Configuration:

Eletric Picking Tray and Front Guardrails

Self Locking Gates

Drivable At Full Height

Non-Marking Tires(2-Wheel Drive 2-Wheel Steering)

Emergency Stop Button

Saloon-door Style Entry Gates/Top Open Door

Flashing Beacon

Charging Indicator

Manual Brake Release

Lanyard Attachment Point

Tie-Down And Lifting Points

Charging Protection System

Optional Configuration

AC Power to Platform

Platform Working Light

Wireless Tracking

Etykietka:

Place of Origin:	China
Nazwa handlowa:	CHENLIFT
Orzecznictwo:	CE
Model Number:	MOP300

Minimum Order Quantity:	1 set
Cena:	negocjowalne
Packaging Details:	Wrapped in pallets
Delivery Time:	30 days
Payment Terms:	T/T L/C
Supply Ability:	200 sets/month
